LIRR maintenance of the way workers.

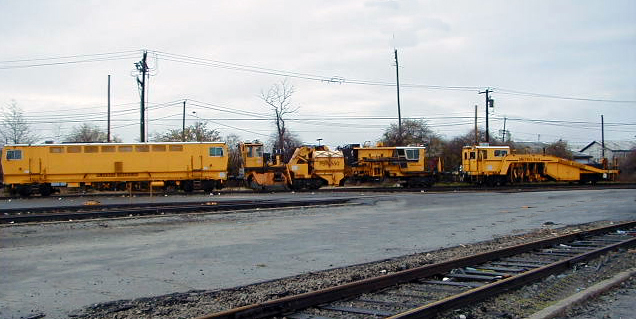

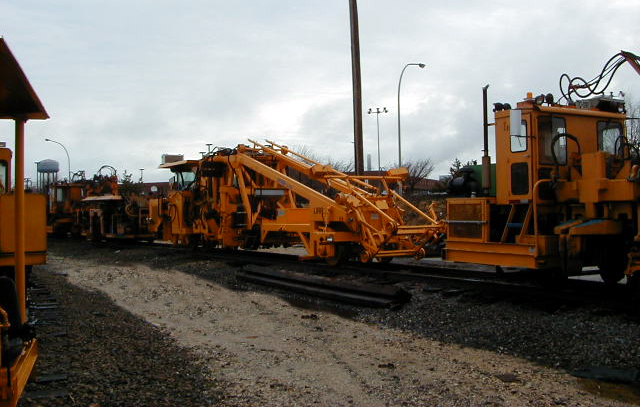

LIRR maintenance of the way (M/W) cars in the Garden City Yard.

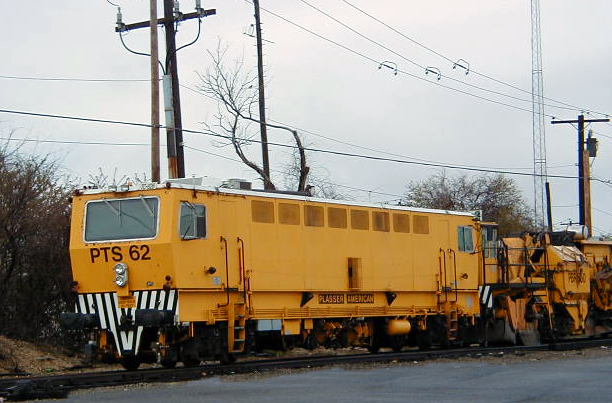

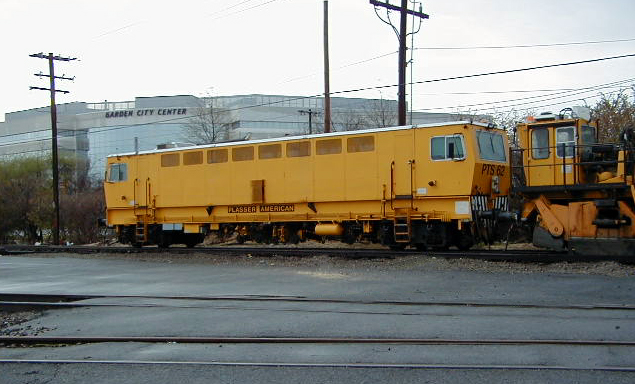

LIRR's Plasser American PTS 62 Dynamic Track Stabilizer - see decription of function in next picture.
The Plasser American PTS 62 Dynamic Track Stabilizer is designed to apply controlled, accurate stabilizing forces into the track structure at continuous speeds of up to 1/2 mph. All track is subject to settling due to traffic loads. This settling occurs irregularly and uncontrolled, resulting in track deterioration. Dynamic track stabilization is a combination of horizontal vibration and a vertical load on the track which accelerates initial settling during maintenance work. A deliberate, accurate settling is achieved with the aid of a reference system. In contrast to rail traffic which settles track in an irregular fashion, dynamic track stabilization consolidates ballast together more densely and more uniformly, thus reducing specific compression stress. Subsequent settlements are, therefore, only marginal and in this way a more geometrically exact track structure is produced with considerably higher vertical and horizontal stability.
A LIRR Plasser American PBR 550 in the Garden City Yard.

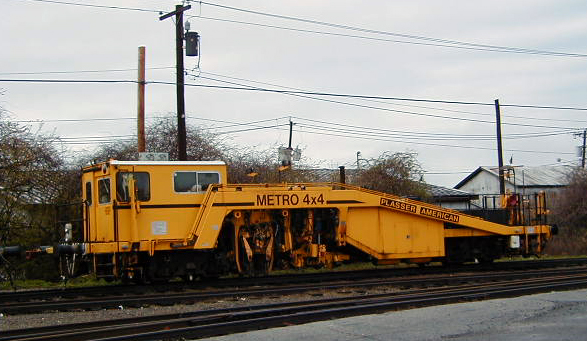

The Plasser American Universal Metro 4X4 is a heavy duty, high performance switch and production tamping machine. It is a multi-function tamping machine and has fully automatic track lifting, lining, and cross-leveling capabilities.

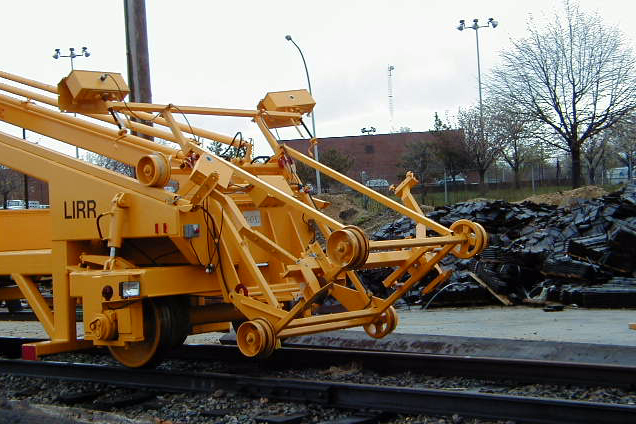

An LIRR tie crane used for placing ties next to the track for a tie replacer to insert under the existing rails.

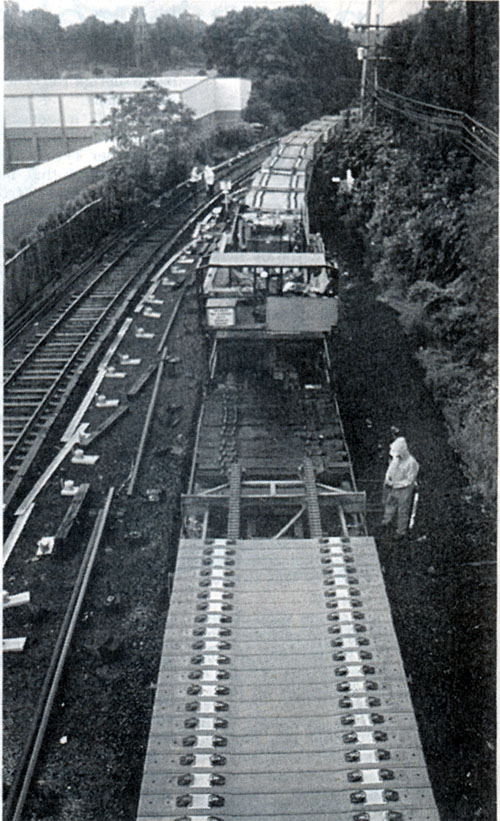

Concrete ties on LIRR flat bed cars ready for installation.

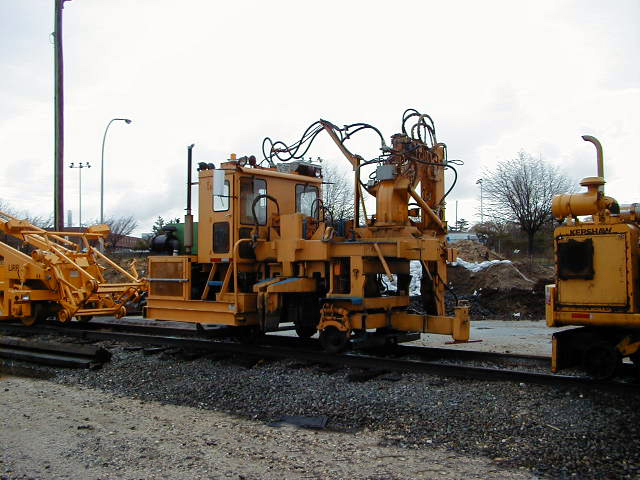

LIRR tie replacing cars in the Garden City Yard.

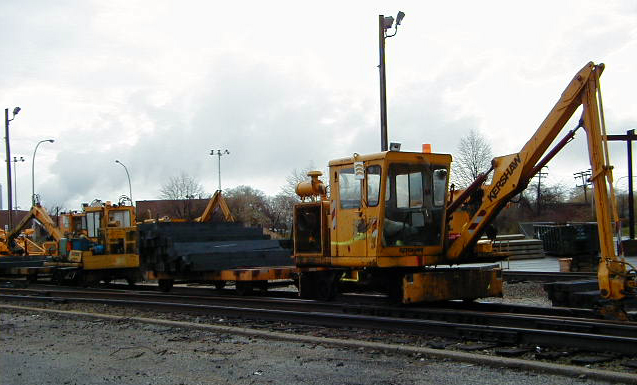

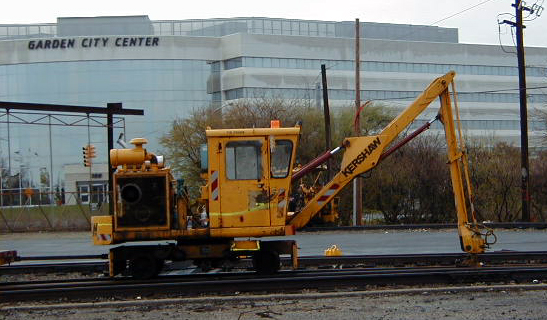

A LIRR Kershaw tie crane in the Garden City Yard.

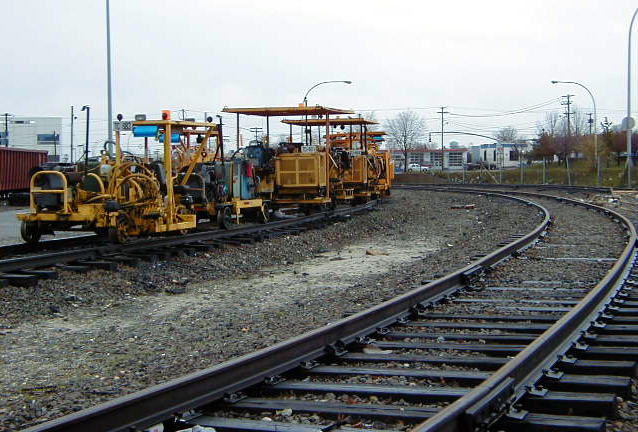

LIRR tie replacing cars in the Garden City Yard.

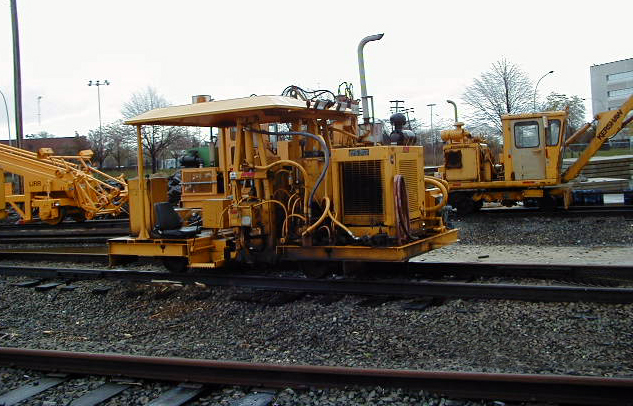

LIRR tamping car in the Garden City Yard.
LIRR tie removing car in the Garden City Yard.

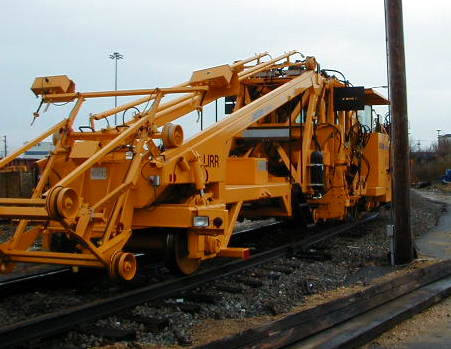

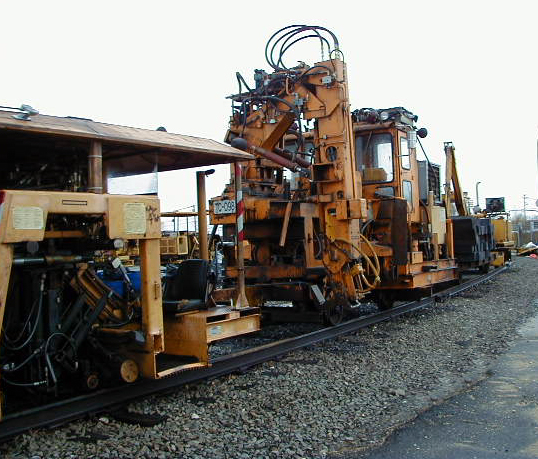

The LIRR's Jackson 6700 switch tamper car.
Lifting and lining power is applied through a jacking beam mounted on four 10" flanged wheels for going through a switch. To lift the rail hydraulic clamps grasp either the head of the rail or, in turnouts where the hook cannot engage the head, under the base.
LIRR tie removal and replacing cars in the Garden City Yard.
Another LIRR tie crane in the Garden City Yard.
LIRR tie removing and replacing cars in the Garden City Yard.
The Jackson 6700 tamping machine with switch tamping capability and precise lining and reference system.

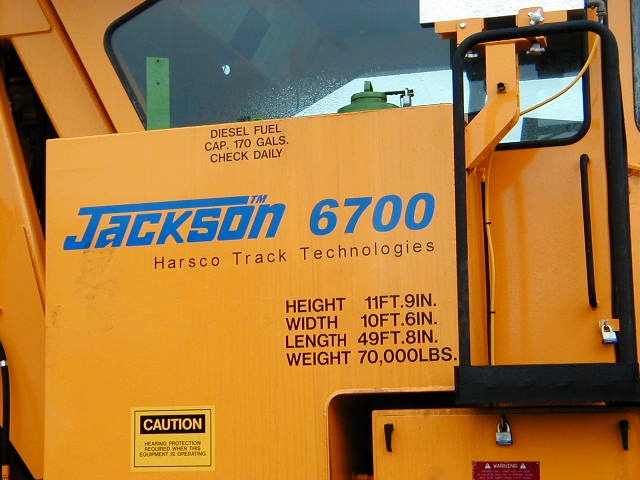

The Jackson 6700.

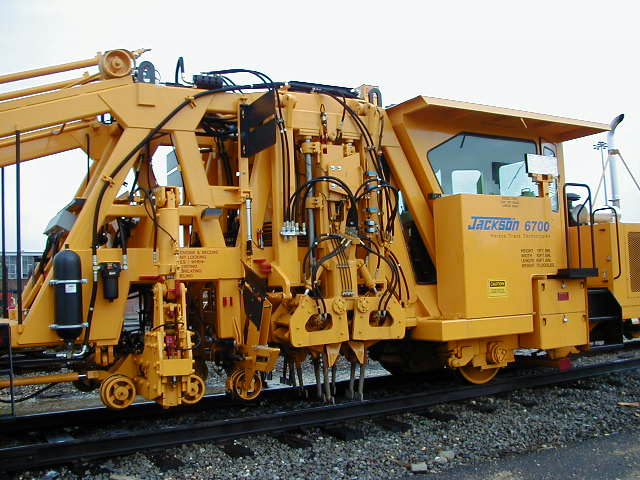

The Jackson 6700 is quite an complex machine. The finger-like units on this machine tamp the ballast back around the tie after it has be re-installed.
A close-up view of the ballast replacing parts of the Jackson 6700.

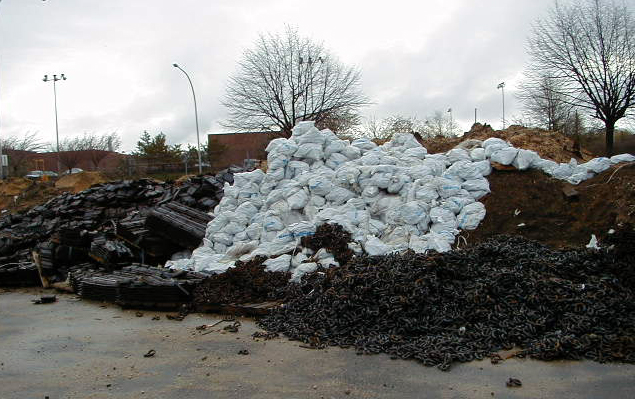

Piles of Pandrol rail plates and rail fasteners.

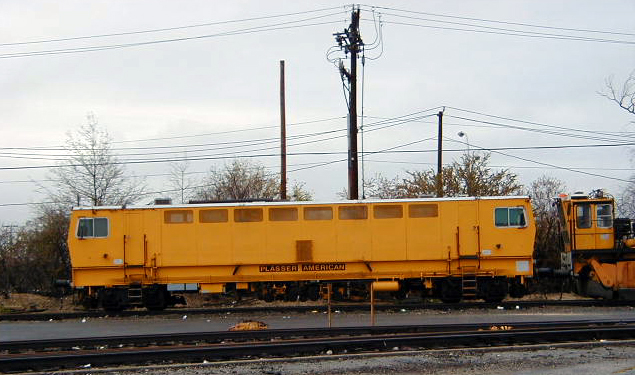

LIRR Plasser American PTS 62 Dynamic Track Stabilizer.
LIRR Plasser American PTS 62 Dynamic Track Stabilizer, a Plasser PBR 550 and a Plasser Metro 4X4.
